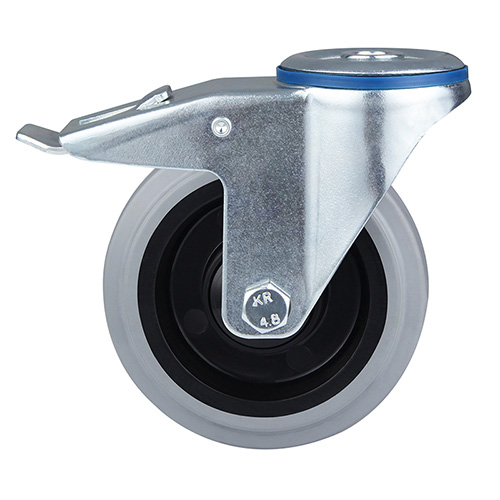

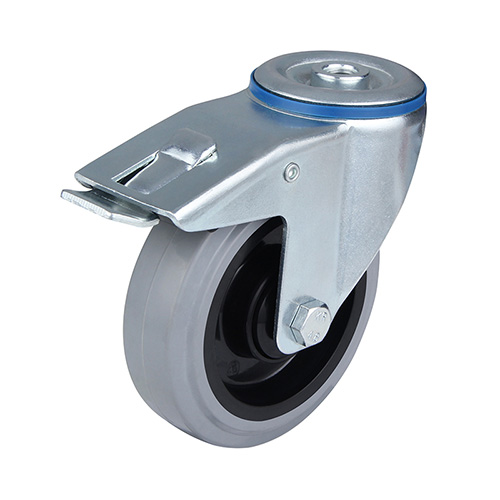

Grey Elastic Rubber Swivel Castor with Bolt hole and Total Lock with Central Ball Bearing with Black Samll Plastic Thread Guards

Grey Elastic Rubber Swivel Castor with Bolt hole and Total Lock with Central Ball Bearing with Black Samll Plastic Thread Guards

Industrial Castors , Grey

Housing

bolt_hole_castors_with_total_brake

Wheel diameter

80, 100, 100, 125, 125mm

Load capacity

130, 160, 160, 230, 250kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, central ball bearing,black samll plastic thread guards

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Offset	Hole center	Swivel raidus	Overall height	Load capacity	number
80	36	36	ф10.5/ф13	129	99	130	07H1TB80D36CEPBA4208
100	36	40	ф10.5/ф13	132	124	180	07H1TB100D36CEPBA4208
100	36	40	ф10.5/ф13	132	127	180	07H1TB/S100D36CEPBA4208
125	36	40	ф10.5/ф13	134	154	250	07H1TB125D36CEPBA5210
125	38	40	ф10.5/ф13	134	154	250	07H1TB125D38CEPBA5210

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, central ball bearing,black samll plastic thread guards
