 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|
| 80 | 36 | 105x80 | 80x60 | 11X9 | 36 | 100 | 130 | 07P1S80D35CEPBA428 |
| 100 | 36 | 105x80 | 80x60 | 11X9 | 36 | 125 | 160 | 07P1S100D36CEPBA428 |
| 100 | 36 | 105x80 | 80x60 | 11X9 | 36 | 128 | 160 | 07P1S/S100D36CEPBA428 |
| 125 | 36 | 105x80 | 80x60 | 11X9 | 36 | 155 | 230 | 07P1S125D36CEPBA5210 |
| 125 | 38 | 105x80 | 80x60 | 11X9 | 36 | 155 | 250 | 07P1S125D38CEPBA5210 |

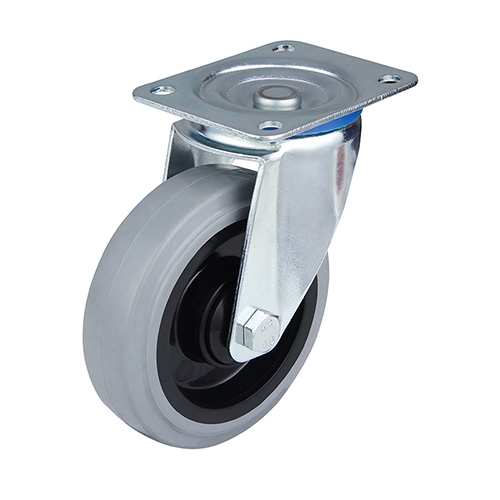

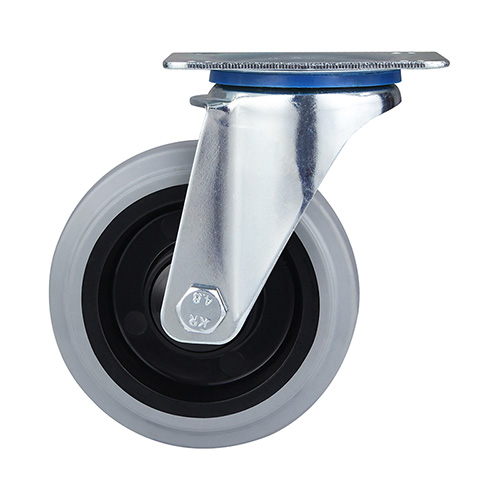

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, central ball bearing,black samll plastic thread guards
