Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
100 | 34 | 105x80 | 80x60 | 11X9 | 40 | 132 | 125 | 160 | 07P1TB100D34DETRX4012 |
100 | 34 | 105x80 | 80x60 | 11X9 | 40 | 132 | 128 | 160 | 07P1TB/S100D34DETRX4012 |
125 | 40 | 135x110 | 105x80 | 11X9 | 40 | 134 | 155 | 250 | 07P1TB125D40DETRX5015 |
160 | 46 | 135x110 | 105x80 | 13.5x11 | 60 | 203 | 190 | 300 | 07P1TB160D46DETRX6020 |
200 | 46 | 135x110 | 105x80 | 13.5x11 | 60 | 203 | 350 | 350 | 07P1TB200D46DETRX6020 |

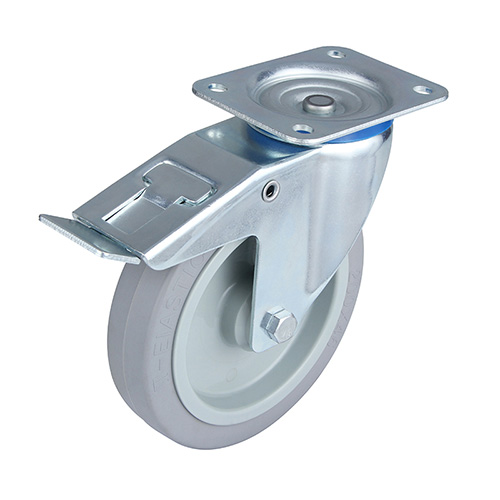

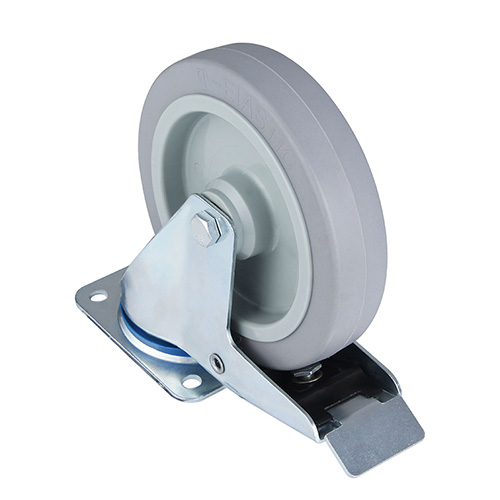

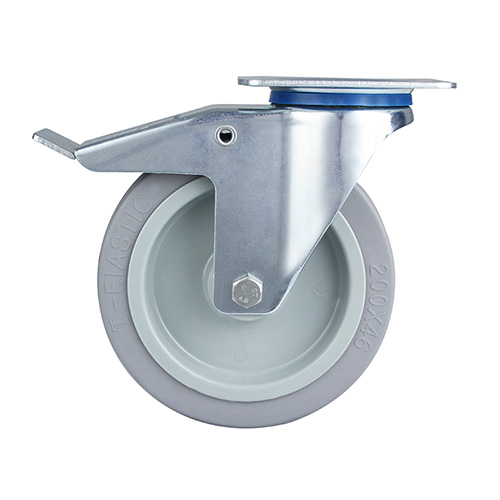

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, grey polyamide wheel centre, shore a 68+5 grey elastic rubber tread, roller bearing
