 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|
| 160 | 40 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 350 | 09P1DB160H40DUPDA6212 |
| 160 | 40 | 135x110 | 105x80 | 13.5x11 | 52 | 200 | 350 | 09P1DB/S160H40DUPDA6212 |
| 200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 500 | 09P1DB200H50DUPDA6212 |
| 200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 245 | 500 | 09P1DB/S200H50DUPDA6212 |

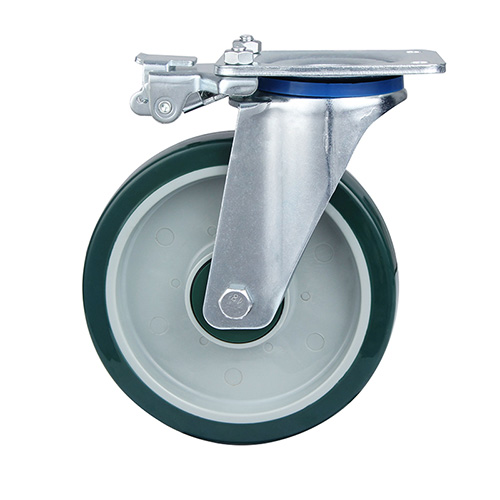

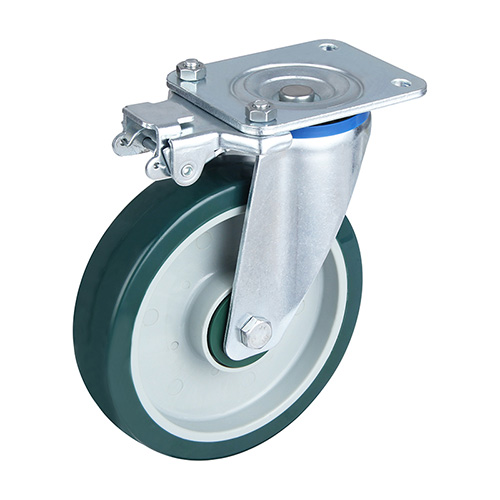

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, two ball bearings, green plastic samll thread guards
