Wheel Diameter |
Width of Tread |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|
80 | 34 |
ф10.5/ф13 |
40 | 108 | 150 | 09H1S80H34DUPDA4208 |
100 | 34 |
ф10.5/ф13 |
40 | 132 | 200 | 09H1S100H34DUPDA4208 |
125 | 36 |
ф10.5/ф13 |
40 | 155 | 250 | 09H1S125H36DUPDA5210 |

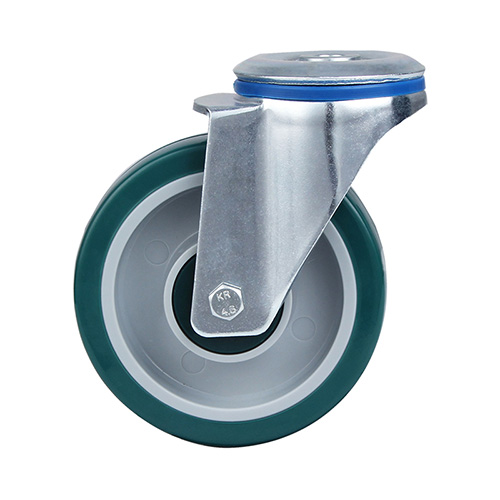

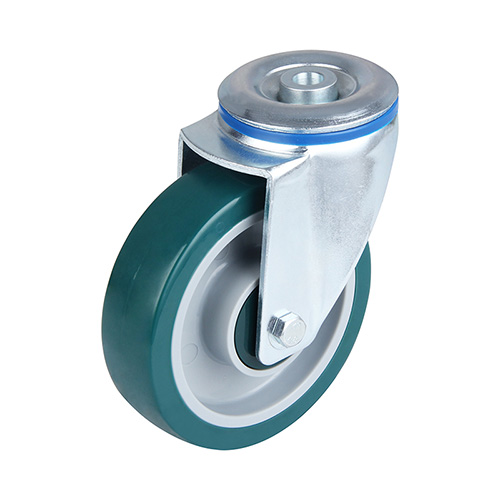

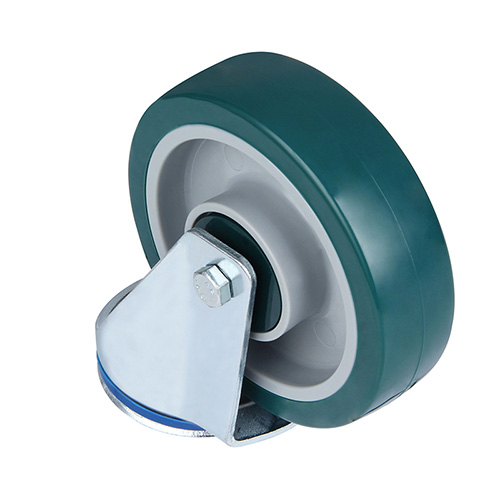

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, two ball bearings, green plastic samll thread guards
