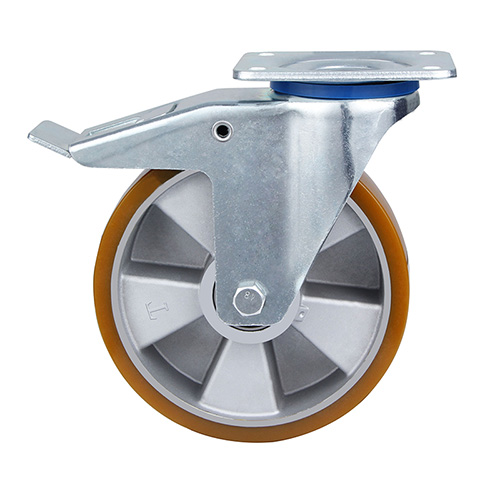

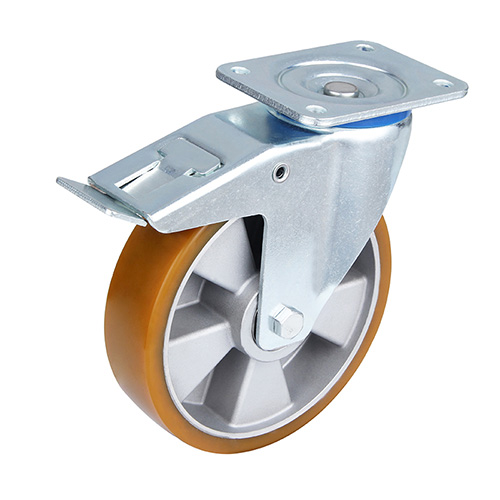

Brown Polyurethane Swivel Castor with Total Lock with Silvery Casting-Aluminium Wheel Centre

Brown Polyurethane Swivel Castor with Total Lock with Silvery Casting-Aluminium Wheel Centre

Industrial Castors , Brown

Housing

total_brake_castors

Wheel diameter

80, 100, 125, 160, 160, 200, 200mm

Load capacity

150, 200, 250, 350, 350, 500, 500kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 92 brown polyurethane tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
80	38	105x80	80x60	11X9	40	120	108	200	09P1TB80K38JUADX4015
100	38	105x80	80x60	11X9	40	122	132	250	09P1TB100K38JUADX4015
125	38	105x80	80x60	11X9	40	122	155	300	09P1TB125K38JUADX5015
160	50	135x110	105x80	13.5x11	60	199	190	500	09P1TB160K50JUADX6020
160	50	135x110	105x80	13.5x11	60	199	200	600	09P1TB/S160K50JUADX6020
200	50	135x110	105x80	13.5x11	60	199	235	600	09P1TB200K50JUADX6020
200	50	135x110	105x80	13.5x11	60	199	245	600	09P1TB/S200K50JUADX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 92 brown polyurethane tread, two ball bearings
