Housing
bolt_hole_castors
Wheel diameter
100, 125mm
Load capacity
160, 250kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 68+5

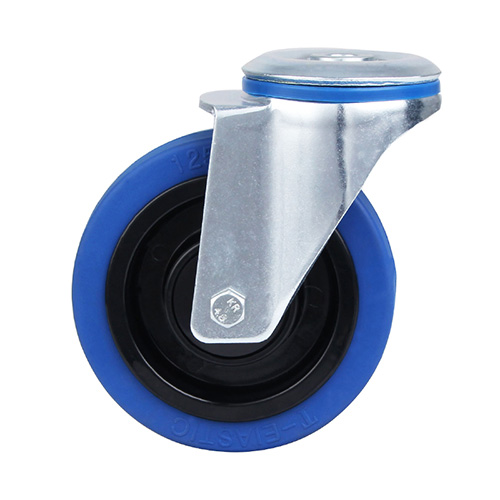

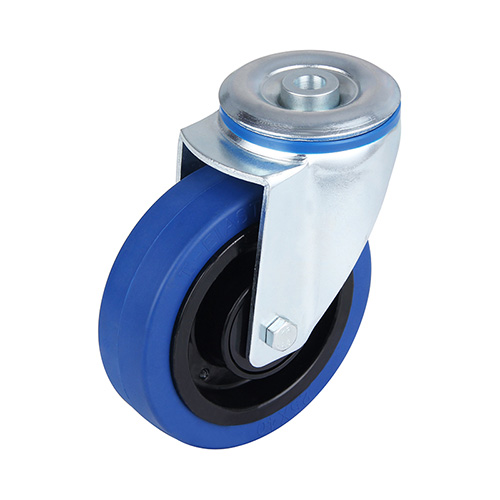

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel headblack polyamide wheel centre, shore a 68+5 blue elastic rubber tread, two ball bearings, black samll plastic thread guards
 Wheel Diameter |
 Width of Tread |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|
| 100 | 34 |
ф10.5/ф13 |
40 | 132 | 160 | 09H1S100A34CETDA428 |
| 125 | 40 |
ф10.5/ф13 |
40 | 155 | 250 | 09H1S125A34CETDA5210 |
Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel headblack polyamide wheel centre, shore a 68+5 blue elastic rubber tread, two ball bearings, black samll plastic thread guards
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
