 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 34 | 105x80 | 80x60 | 11X9 | 40 | 122 | 132 | 160 | 09P1TB100A34CETDA428 |
| 125 | 40 | 105x80 | 80x60 | 11X9 | 40 | 122 | 155 | 250 | 09P1TB125A40CETDA5210 |
| 160 | 46 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 190 | 300 | 09P1TB160A46CETDA6212 |
| 160 | 46 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 200 | 300 | 09P1TB/S160A46CETDA6212 |
| 200 | 46 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 235 | 400 | 09P1TB200A46CETDA6212 |
| 200 | 46 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 245 | 400 | 09P1TB/S200A46CETDA6212 |

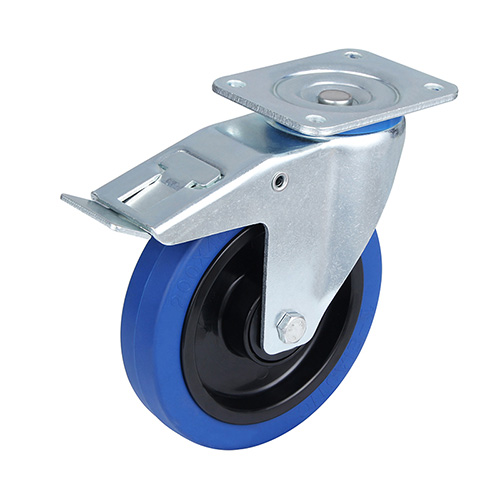

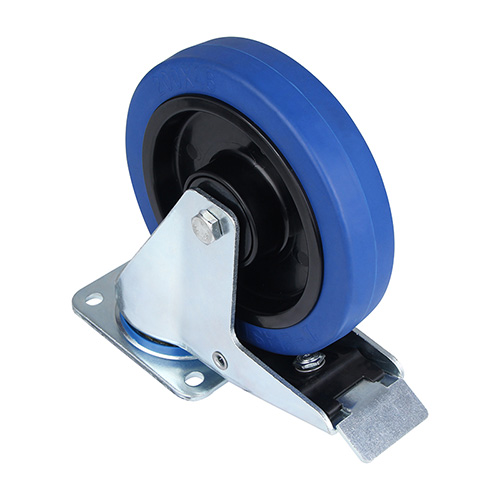

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel headblack polyamide wheel centre, shore a 68+5 blue elastic rubber tread, two ball bearings, black samll plastic thread guards
