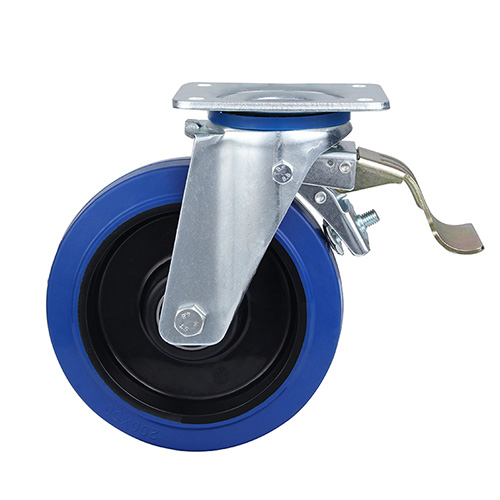

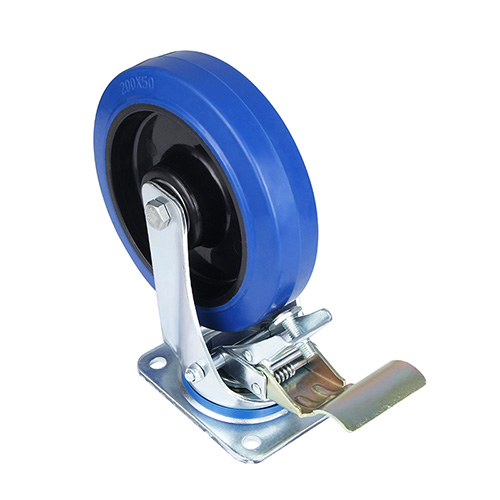

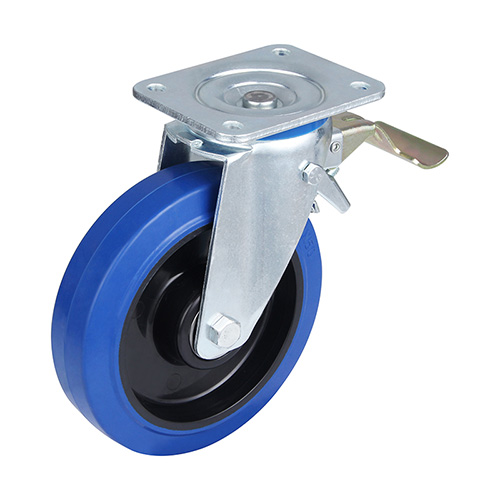

Blue Elastic Rubber Swivel Castor with Front Lock with Two Ball Bearings Blue Elastic Rubber Swivel Castor with Front Lock with Two Ball Bearings
Blue Elastic Rubber Swivel Castor with Front Lock with Two Ball Bearings Blue Elastic Rubber Swivel Castor with Front Lock with Two Ball Bearings
Blue Elastic Rubber Swivel Castor with Front Lock with Two Ball Bearings Blue Elastic Rubber Swivel Castor with Front Lock with Two Ball Bearings

Blue Elastic Rubber Swivel Castor with Front Lock with Two Ball Bearings

Housing

tail_brake_castors

Wheel diameter

160, 200mm

Load capacity

300, 400kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset

Swivel radius

Overall height

Load capacity
number
160 50 135x110 105x80 13.5x11 52 154 190 350 09P1FB160A50CEPDX6020
160 50 135x110 105x80 13.5x11 52 154 190 350 09P1FB/S160A50CEPDX6020
200 50 135x110 105x80 13.5x11 54 154 235 400 09P1FB200A50CEPDX6020
200 50 135x110 105x80 13.5x11 54 154 235 400 09P1FB/S200A50CEPDX6020


Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Asphalt Floor

Asphalt Floor

Not Paved

Not Paved

Expanded Metal

Expanded Metal

Floor With Chips

Floor With Chips
