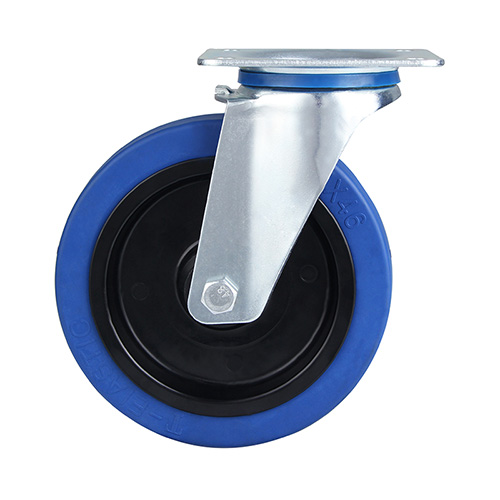

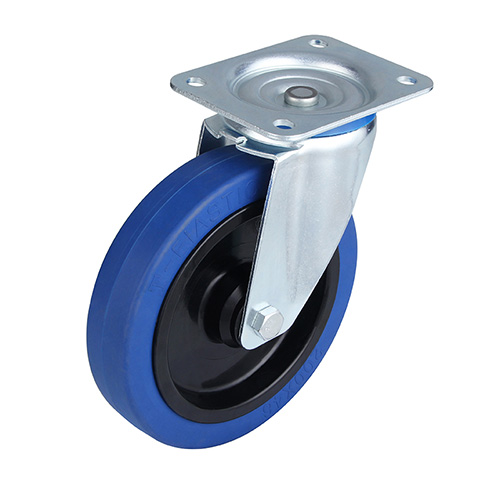

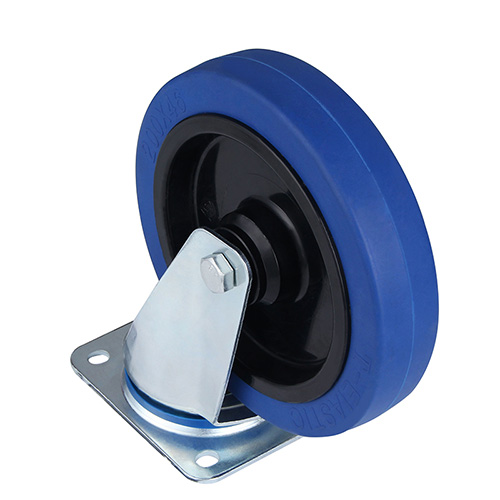

Blue Elastic Rubber Swivel Castor

Industrial Castors , Blue

Housing

swivel_castors

Wheel diameter

100, 100, 125, 160, 200mm

Load capacity

160, 160, 250, 300, 350kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
100	36	105x80	80x60	11X9	36	125	135	07P1S100A34CETRX4012
100	36	105x80	80x60	11X9	36	128	135	07P1S/S100A34CETRX4012
125	36	105x80	80x60	11X9	40	155	160	07P1S125A40CETRX5015
160	46	135x110	105x80	13.5x11	52	190	300	07P1S160A46CETRX6020
200	46	135x110	105x80	13.5x11	54	235	350	07P1S200A46CETRX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing
