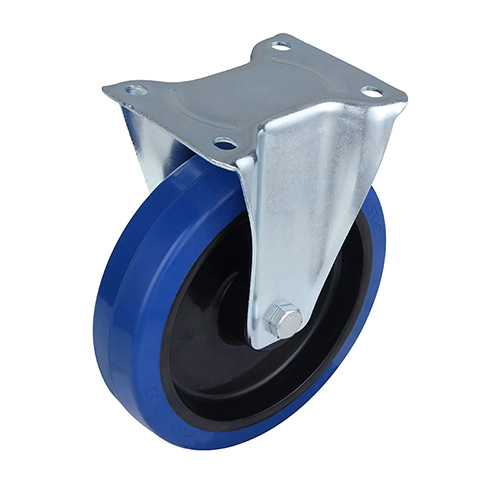

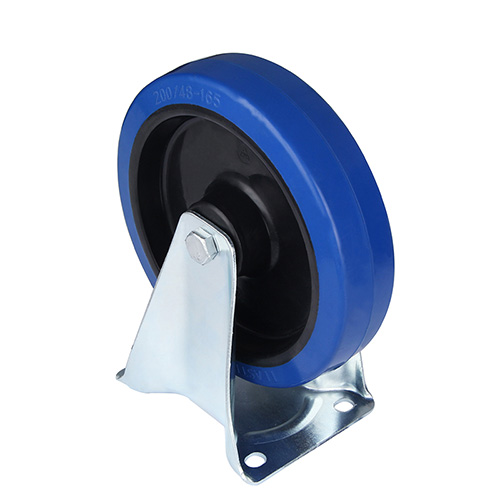

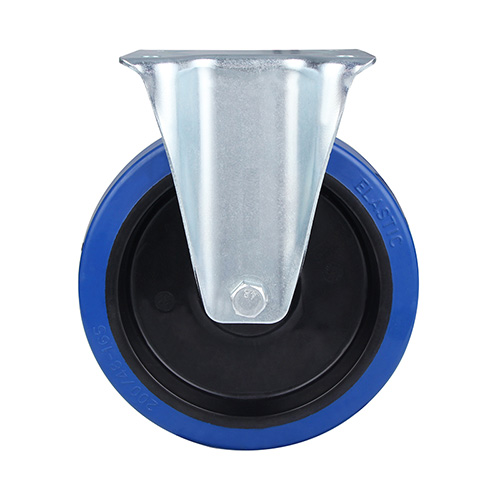

Blue Elastic Rubber Fixed Castor with Polyamide Wheel Centre

Blue Elastic Rubber Fixed Castor with Polyamide Wheel Centre

Industrial Castors , Blue

Housing

fixed_castors

Wheel diameter

80, 100, 100, 125, 160, 200mm

Load capacity

130, 180, 180, 230, 300, 350kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Overall height	Load capacity	number
80	32	102x87	80x60	11X9	100	130	07P1F80A35CEPRX4012
100	32	102x87	80x60	11X9	125	180	07P1F100A36CEPRX4012
100	32	102x87	80x60	11X9	128	180	07P1F/S100A36CEPRX4012
125	32	102x87	80x60	11X9	155	230	07P1F125A36CEPRX5015
160	40	135x114	105x80	13.5x11	190	300	07P1F160A48CEPRX6020
200	40	135x114	105x80	13.5x11	235	350	07P1F200A48CEPRX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing
