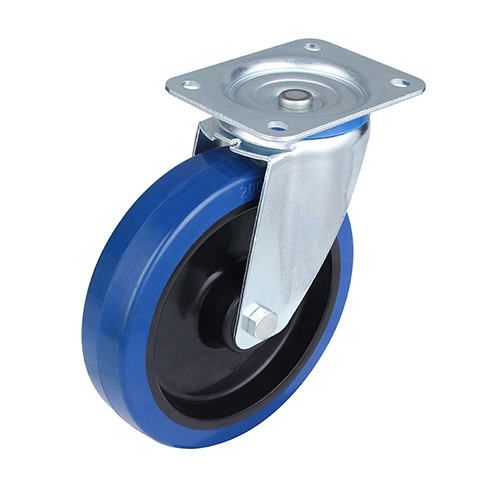

Blue Elastic Rubber Swivel Castor with Polyamide Wheel Centre

Industrial Castors , Blue

Housing

swivel_castors

Wheel diameter

80, 100, 100, 125, 160, 200mm

Load capacity

130, 180, 180, 230, 300, 350kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
80	35	105x80	80x60	11X9	36	100	130	07P1S80D38DTERX4012
100	36	105x80	80x60	11X9	36	125	180	07P1S100D32DTERX4012
100	36	105x80	80x60	11X9	36	128	180	07P1S/S100D32DTERX4012
125	36	105x80	80x60	11X9	36	155	180	07P1S125D32DTERX5015
160	48	135x110	105x80	13.5x11	52	190	300	07P1S160D40DTERX6020
200	48	135x110	105x80	13.5x11	54	235	350	07P1S200D40DTERX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing
