 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 100 | 34 | 105x80 | 80x60 | 11X9 | 125 | 160 | 07P1F100A34CETRX4012 |
| 100 | 34 | 105x80 | 80x60 | 11X9 | 128 | 160 | 07P1F/S100A34CETRX4012 |
| 125 | 40 | 105x80 | 80x60 | 11X9 | 155 | 250 | 07P1F125A40CETRX5015 |
| 160 | 46 | 135x114 | 105x80 | 13.5x11 | 190 | 300 | 07P1F160A46CETRX6020 |
| 200 | 46 | 135x114 | 105x80 | 13.5x11 | 235 | 350 | 07P1F200A46CETRX6020 |

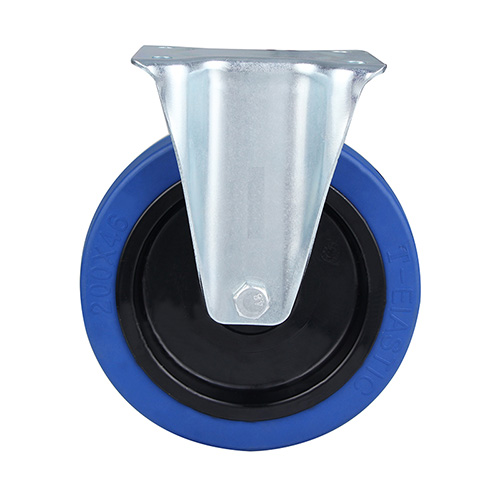

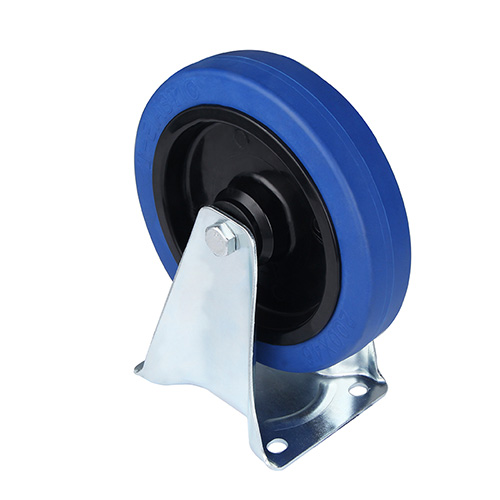

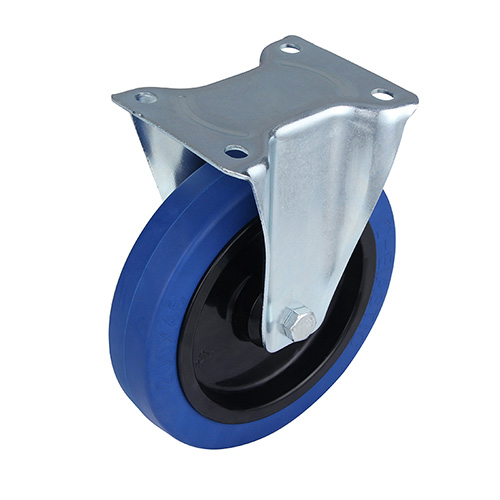

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing
