Housing
total_brake_castors
Wheel diameter
100, 125mm
Load capacity
180, 230kg
Temperature
- 20 / + 80 °C
Standard
EN 12532
Hardness of tread
68+5 Shore A

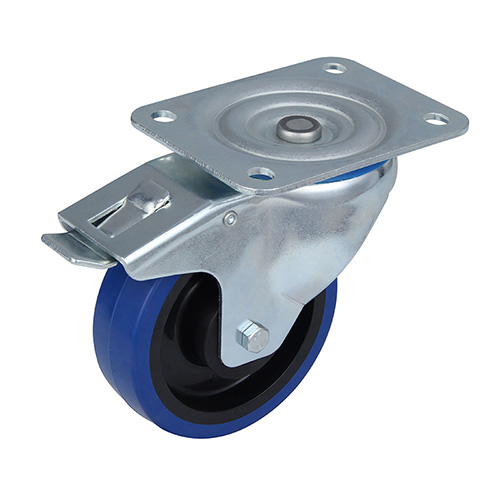

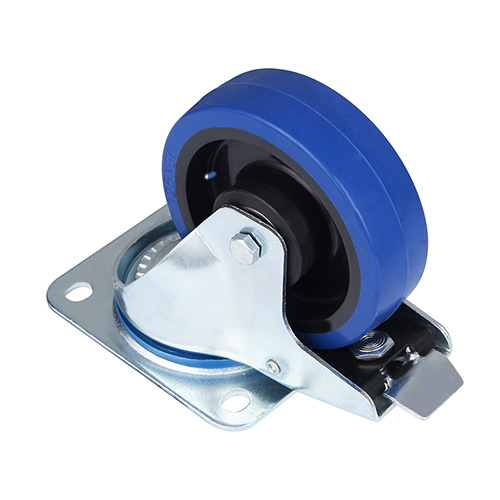

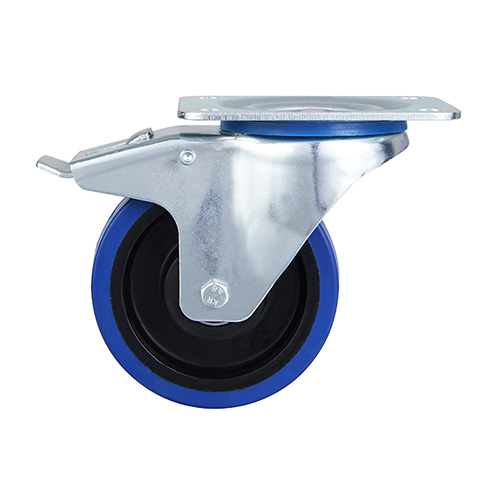

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber thread, two ball bearings
 Wheel Diam |
 Tread Width |
 Plate Size |
 Install Size |
 Bolt Space |
 Eccentricity Distance |
 Swivel Radius |
 Castor Height |
 Load Capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 36 | 135x110 | 105x80 | 13.5X11 | 45 | 137 | 128 | 180 | 06P1RB100A36CEPDX |
| 125 | 36 | 135x110 | 105x80 | 13.5X11 | 48 | 137 | 155 | 230 | 06P1RB125A36CEPDX |
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
