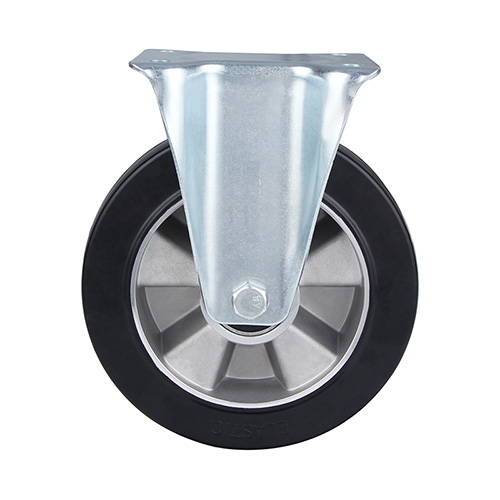

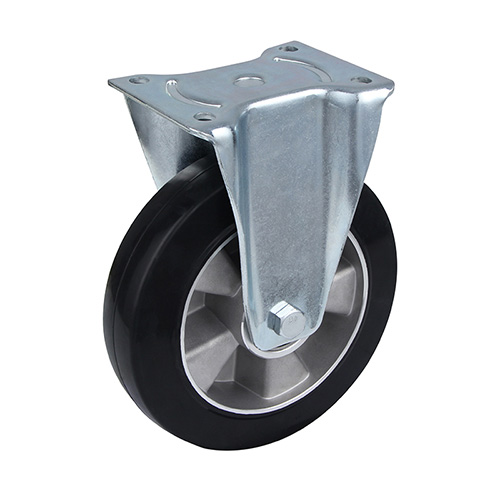

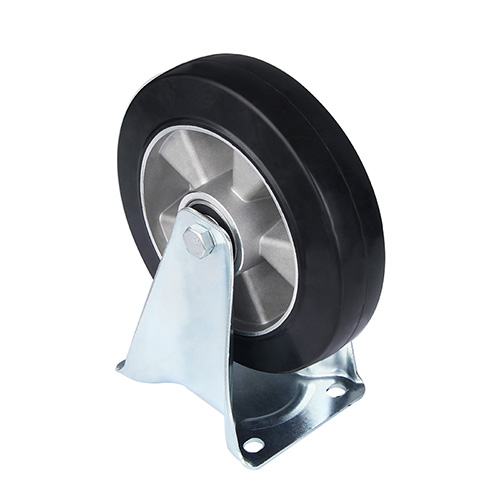

Black Elastic Rubber Fixed Castor with Two Ball Bearings

Black Elastic Rubber Fixed Castor with Two Ball Bearings

Industrial Castors , Black

Housing

fixed_castors

Wheel diameter

80, 100, 100, 125, 160, 200, 230, 250mm

Load capacity

150, 180, 180, 250, 300, 350, 350, 350kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Overall height	Load capacity	number
80	38	102x87	80x60	11X9	100	150	07P1F80C38JEADX4015
100	40	102x87	80x60	11X9	125	180	07P1F100C40JEADX4015
100	40	102x87	80x60	11X9	128	180	07P1F/S100C40JEADX4015
125	40	102x87	80x60	11X9	155	250	07P1F125C40JEADX5015
160	50	135x114	105x80	13.5x11	190	300	07P1F160C50JEADX6020
200	50	135x114	105x80	13.5x11	235	350	07P1F200C50JEADX6020
230	50	135x114	105x80	13.5x11	260	350	07P1F230C50JEADX6020
250	50	135x114	105x80	13.5x11	290	350	07P1F250C50JEADX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber tread, two ball bearings
