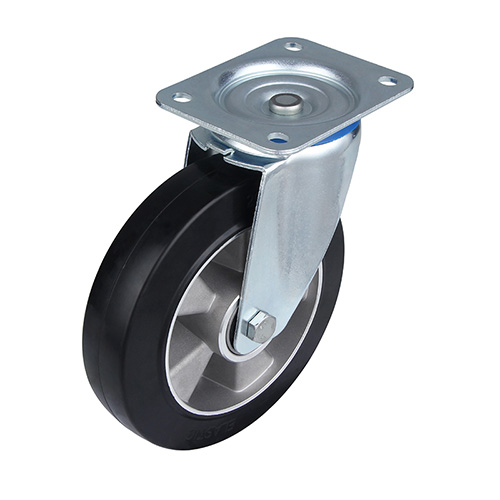

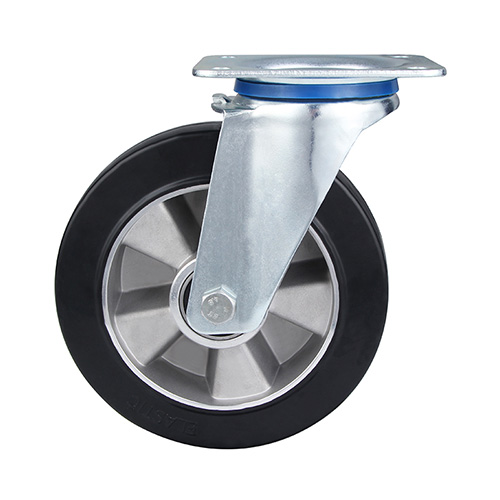

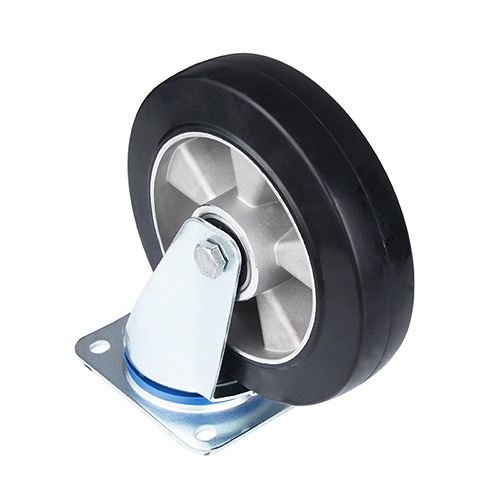

Black Elastic Rubber Swivel Castor with Two Ball Bearings

Black Elastic Rubber Swivel Castor with Two Ball Bearings

Industrial Castors , Black

Housing

swivel_castors

Wheel diameter

80, 100, 125, 160, 200, 230, 250mm

Load capacity

150, 180, 250, 300, 350, 350, 350kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
80	38	105x80	80x60	11x9	36	100	150	07P1S80C38JEADX4015
100	40	105x80	80x60	11x9	36	125	180	07P1S100C40JEADX4015
100	40	105x80	80x60	11x9	36	125	180	07P1S/S100C40JEADX4015
125	40	105x80	80x60	11x9	36	155	250	07P1S125B37.5BBPRX5015
160	50	135x110	105x80	13.5x11	52	190	300	07P1S160C50JEADX6020
200	50	135x110	105x80	13.5x11	54	235	350	07P1S200C50JEADX6020
230	50	135x110	105x80	13.5x11	61	260	350	07P1S230C50JEADX6020
250	60	135x110	105x80	13.5x11	70	290	350	07P1S250C50JEADX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber tread, two ball bearings
