Housing

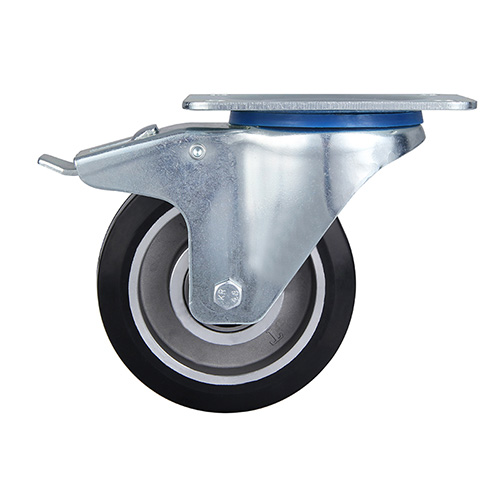

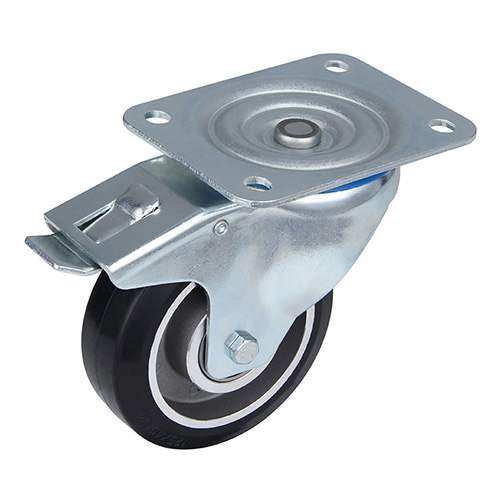

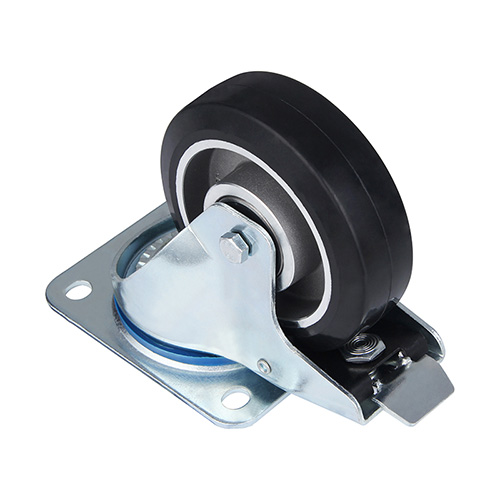

Swivel Castor with Total Lock
Wheel diameter
100, 125mm
Load capacity
180, 230kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
A 68+5 Shore
Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber thread, two ball bearings
 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 40 | 135x110 | 105x80 | 13.5X11 | 45 | 137 | 128 | 200 | 06P1TB100C40JEADX4015 |
| 125 | 40 | 135x110 | 105x80 | 13.5X11 | 45 | 137 | 155 | 250 | 06P1TB125C40JEADX5015 |
| 125 | 40 | 135x110 | 105x80 | 13.5X11 | 45 | 137 | 155 | 250 | 06P1TB/S125C40JEADX5015 |
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
