Housing
fixed_castors
Wheel diameter
100, 125mm
Load capacity
180, 230kg
Temperature
- 20 / + 80 °C
Standard
EN 12532
Hardness of tread
68+5 Shore A

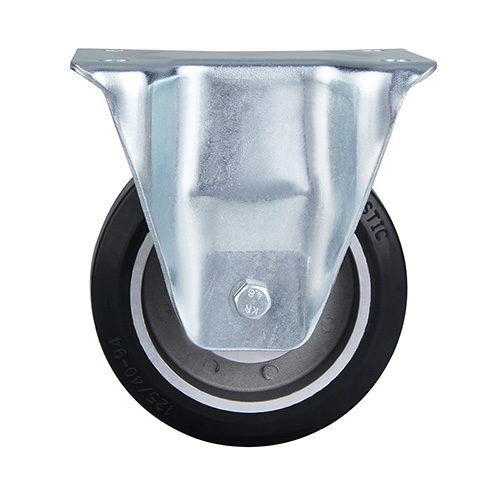

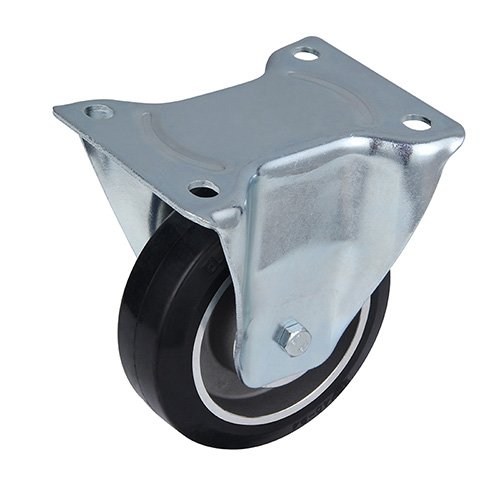

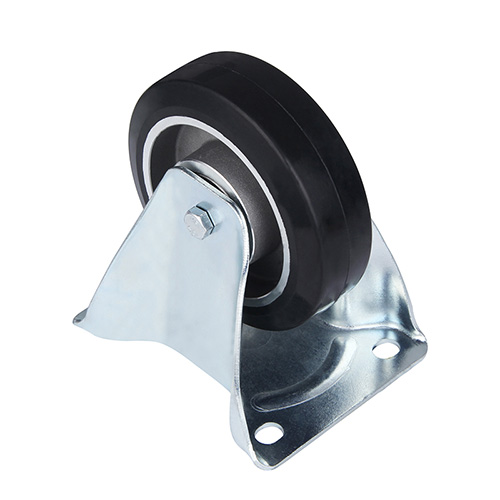

Pressed steel Fixed fork , ,Casting Aluminium wheel centre, shore a 68+5 black elastic rubber thread, two ball bearings
 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 100 | 40 | 135x110 | 105x80 | 13.5X11 | 128 | 180 | 06P1F100C40JEADX |
| 125 | 40 | 135x110 | 105x80 | 13.5X11 | 155 | 230 | 06P1F125C40JEADX |
| 125 | 40 | 135x110 | 105x80 | 13.5X11 | 155 | 230 | 06P1F/S125C40JEADX |
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
