Housing
swivel_castors
Wheel diameter
100mm
Load capacity
80kg
Temperature
250 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

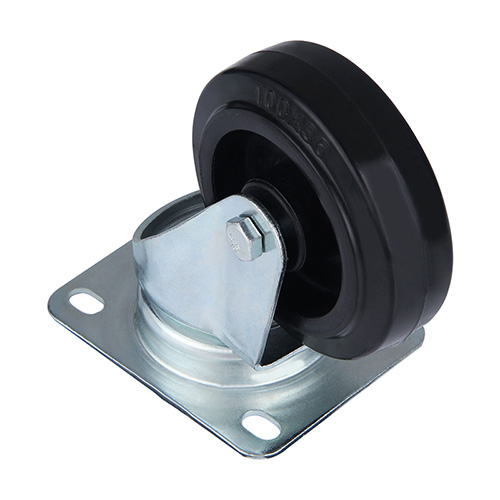

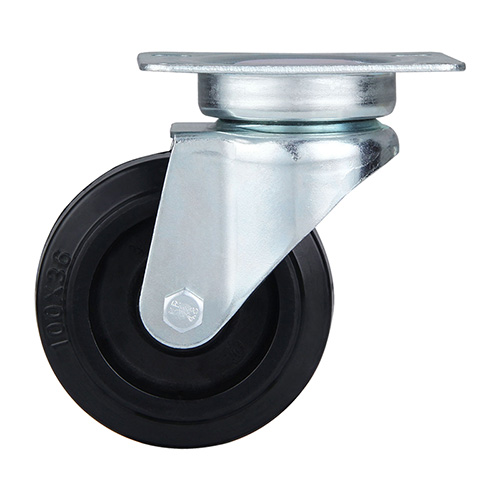

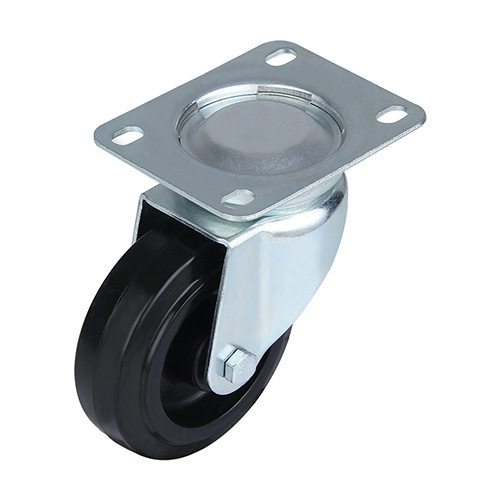

Pressed steel swivel fork assembly, zinc-plated, swivel head with pricision ball bearing, black polyamide 6 wheel centre, high temperature rubber tyre,plain bore
 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|
| 100 | 36 | 105x80 | 80x60 | 9 | 40 | 130 | 80 | 04P1S100C36CHPPX4012 |
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
