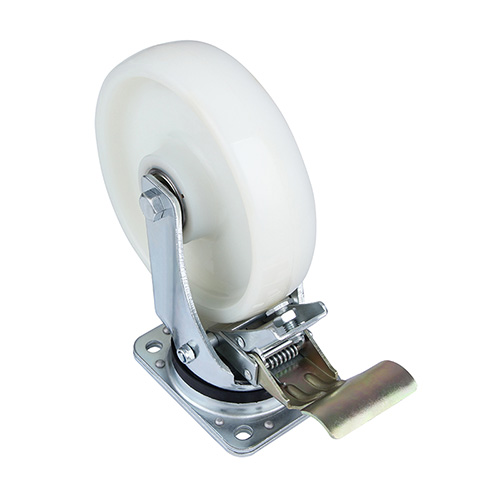

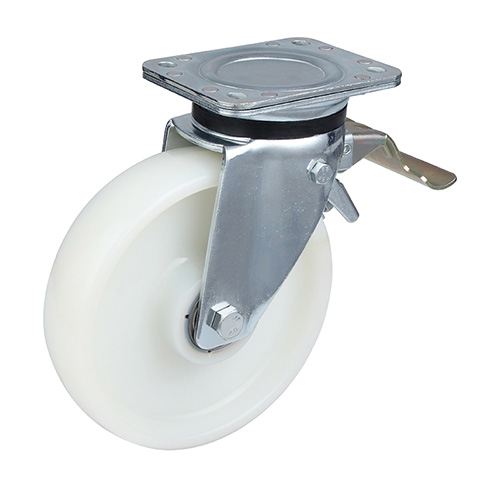

White Polyamide Heavy Duty Swivel Castor with Front Lock White Polyamide Heavy Duty Swivel Castor with Front Lock
White Polyamide Heavy Duty Swivel Castor with Front Lock White Polyamide Heavy Duty Swivel Castor with Front Lock
White Polyamide Heavy Duty Swivel Castor with Front Lock White Polyamide Heavy Duty Swivel Castor with Front Lock

White Polyamide Heavy Duty Swivel Castor with Front Lock

Heavy Duty Industrial Castors , White

Housing

tail_brake_castors

Wheel diameter

100, 125, 150, 160, 200mm

Load capacity

350, 700, 800, 800, 800kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, white injection polyamide, two ball bearings

Chat Now

TECHNICAL DATA


Wheel Diameter
Width of Tread
Size of Plate
Plate hole centers
Plate hole
Offset
Swivel radius
Overall height
Load capacity 		number
125 50 135x110 105x80 13.5x11 50 147 178 700 03P1FB125B50BPHDX6020
150 50 135x110 105x80 13.5x11 53 147 210 800 03P1FB150B50BPHDX6020
160 50 135x110 105x80 13.5x11 53 147 215 800 01P1FB160B50BPHDX6020
200 50 135x110 105x80 13.5x11 55 156 245 800 03P1FB200B50BPHDX6020


Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, white injection polyamide, two ball bearings

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Quality & Service since 18 Year

Our quality is creating an easier work-life for the user of the wheel.

Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
