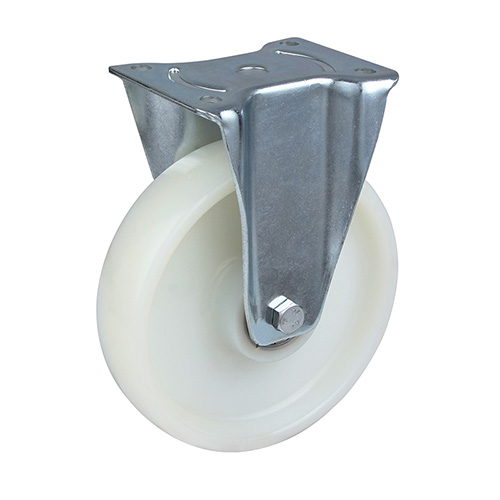

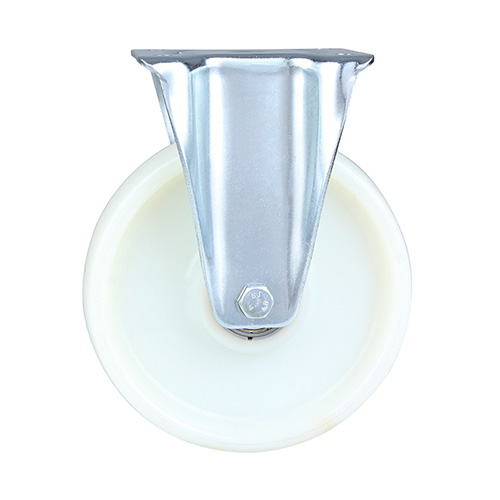

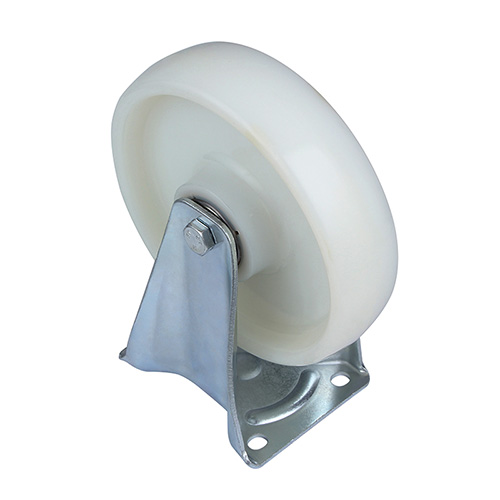

White Polyamide Heavy Duty Fixed Castors White Polyamide Heavy Duty Fixed Castors
White Polyamide Heavy Duty Fixed Castors White Polyamide Heavy Duty Fixed Castors
White Polyamide Heavy Duty Fixed Castors White Polyamide Heavy Duty Fixed Castors

White Polyamide Heavy Duty Fixed Castors

Heavy Duty Industrial Castors , White

Housing

fixed_castors

Wheel diameter

100, 125, 150, 160, 200mm

Load capacity

350, 700, 800, 800, 800kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, white injection polyamide, two ball bearings

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Overall height

Load capacity
number
100 38 105x80 80x60 11X9 130 350 03P1F100K38CUIDX4512
125 50 135x110 105x80 13.5x11 178 700 03P1F125K50CUIDX6020
150 50 135x110 105x80 13.5x11 210 800 03P1F150K50CUIDX6020
160 50 135x110 105x80 13.5x11 215 800 03P1F160K50CUIDX6020
200 50 135x110 105x80 13.5x11 245 800 03P1F200K50CUIDX6020


Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, white injection polyamide, two ball bearings

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Quality & Service since 18 Year

Our quality is creating an easier work-life for the user of the wheel.

Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
