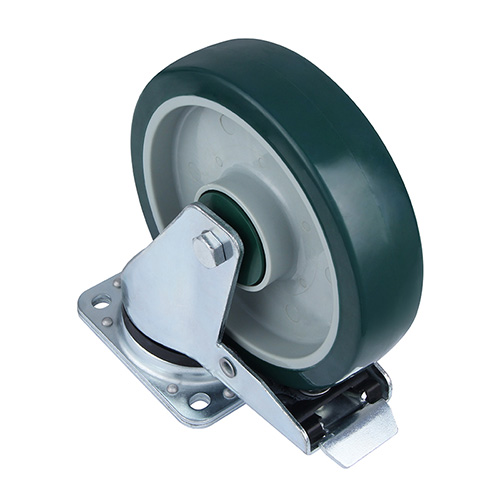

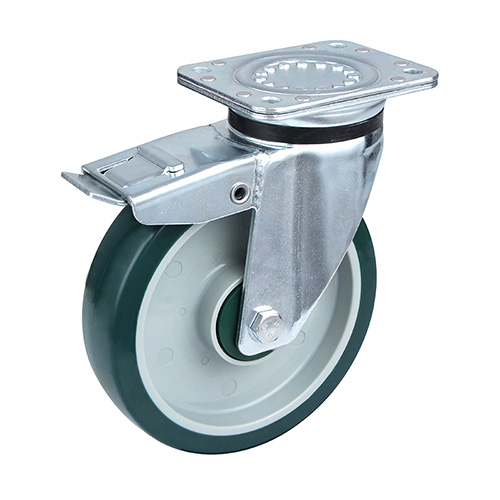

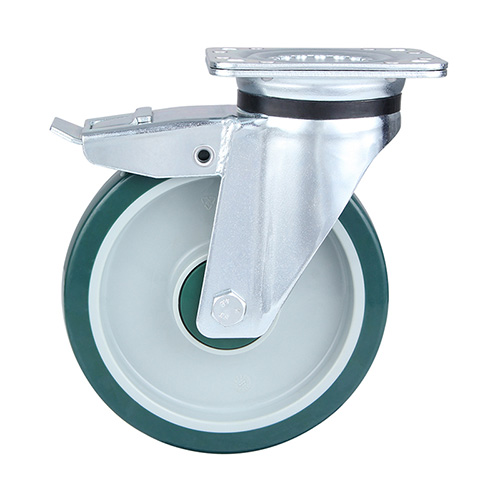

Green Polyurethane Heavy Duty Swivel Castor with Total Lock

Green Polyurethane Heavy Duty Swivel Castor with Total Lock

Heavy Duty Industrial Castors , Green

Housing

total_brake_castors

Wheel diameter

80, 100, 125, 150, 160, 200mm

Load capacity

150, 200, 300, 350, 400, 500kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, two ball bearings, green samll plastic thread guards

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
80	34	105x80	80x60	11X9	40	120	120	150	03P1TB80H34DUPDA4208
100	36	105x80	80x60	11X9	40	120	130	200	03P1TB100H36DUPDA4208
150	40	135x110	105x80	13.5x11	53	199	210	300	03P1TB150H40DUPDA6212
160	40	135x110	105x80	13.5x11	53	162	215	350	03P1TB160H40DUPDA6212
200	50	135x110	105x80	13.5x11	55	162	245	500	03P1TB200H50DUPDA6212
