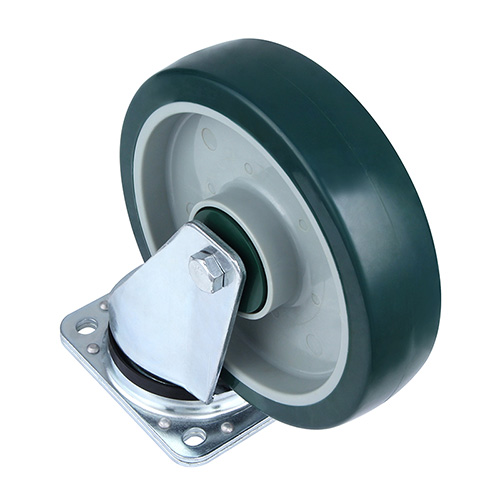

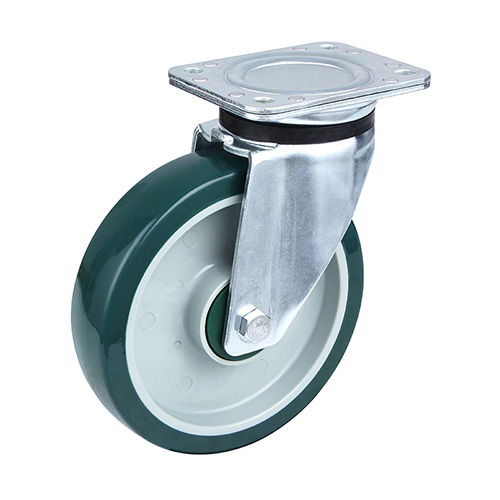

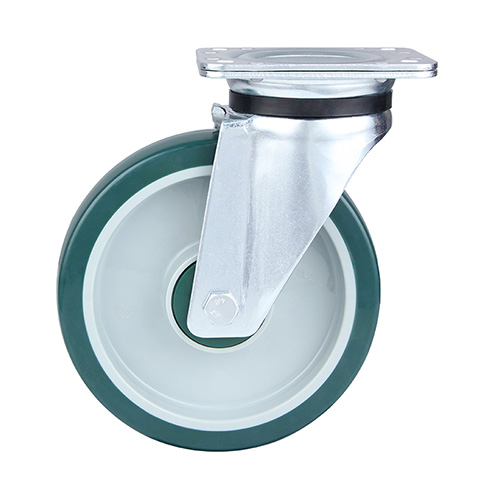

Green Polyurethane Heavy Duty Swivel Castor Green Polyurethane Heavy Duty Swivel Castor
Green Polyurethane Heavy Duty Swivel Castor Green Polyurethane Heavy Duty Swivel Castor
Green Polyurethane Heavy Duty Swivel Castor Green Polyurethane Heavy Duty Swivel Castor

Green Polyurethane Heavy Duty Swivel Castor

Heavy Duty Industrial Castors , Green

Housing

swivel_castors

Wheel diameter

80, 100, 150, 160, 200mm

Load capacity

150, 200, 300, 350, 500kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, two ball bearings, green samll plastic thread guards

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset
Overall height

Load capacity
number
80 34 105x80 80x60 11X9 40 120 150 03P1S80H34DUPDA4208
100 36 105x80 80x60 11X9 40 130 200 03P1S100H36DUPDA4208
150 40 135x110 105x80 13.5x11 53 210 300 03P1S150H40DUPDA6212
160 40 135x110 105x80 13.5x11 53 215 350 03P1S160H40DUPDA6212
200 50 135x110 105x80 13.5x11 55 245 500 03P1S200H50DUPDA6212


Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, two ball bearings, green samll plastic thread guards


Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
