Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
125 | 50 | 135x110 | 105x80 | 13.5x11 | 50 | 155.65 | 177.5 | 400 | 03P1CB125H50JUHDX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 155.65 | 215 | 550 | 03P1CB160H50JUHDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 155.65 | 255 | 700 | 03P1CB200H50JHUDX6020 |

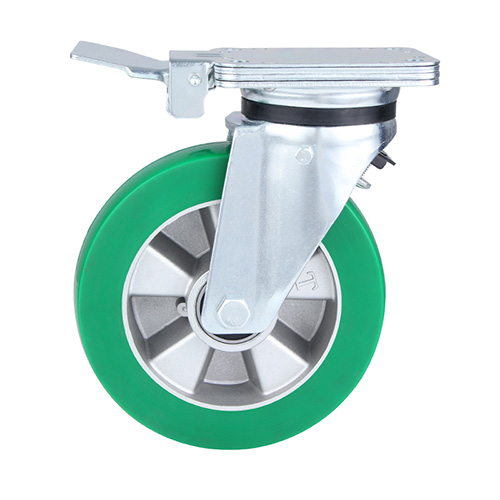

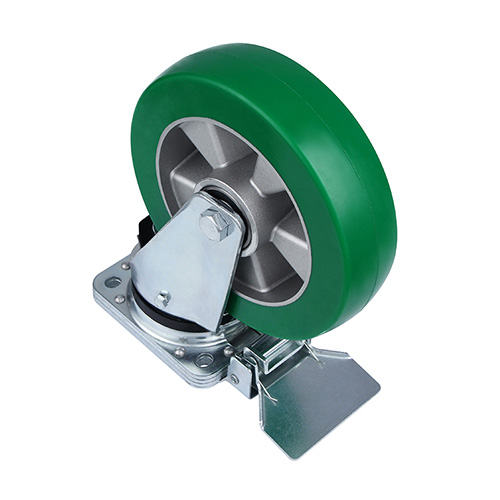

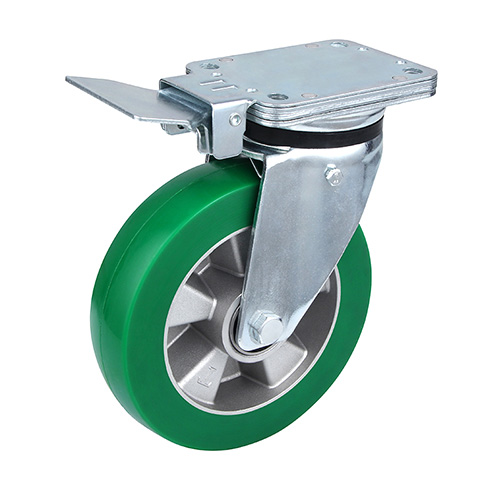

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore A 85 green elastic polyurethane tread, two ball bearings
