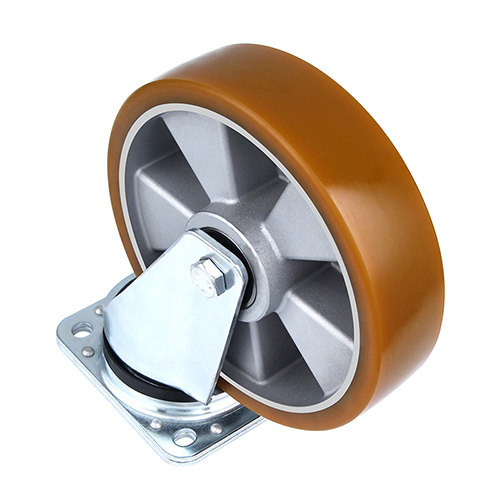

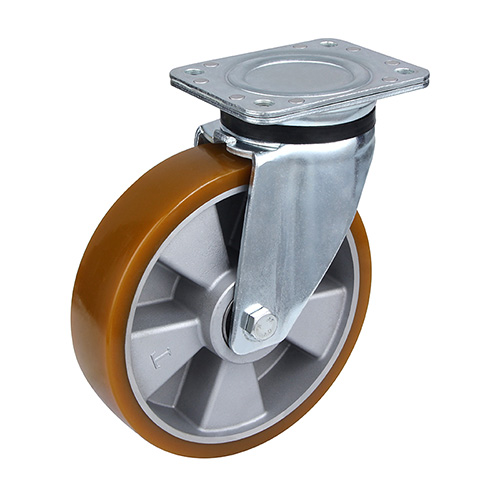

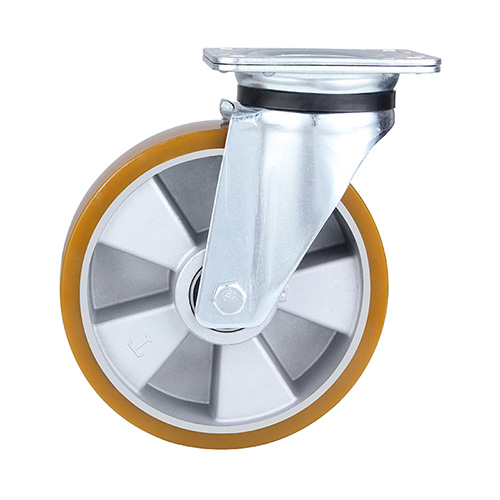

Brown Polyurethane Heavy Duty Swivel Castors

Brown Polyurethane Heavy Duty Swivel Castors

Heavy Duty Industrial Castors , Brown

Housing

swivel_castors

Wheel diameter

80, 100, 125, 150, 160, 200, 250mm

Load capacity

180, 200, 450, 550, 600, 800, 800kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore a 92 brwon polyurethane thread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
80	38	105x80	80x60	11X9	40	120	180	03P1S80K38JUADX4015
100	38	105x80	80x60	11X9	40	130	200	03P1S100K38JUADX5015
125	50	135x110	105x80	13.5x11	50	178	450	03P1S125K50JUADX6020
150	50	135x110	105x80	13.5x11	53	210	550	03P1S150K50JUADX6020
160	50	135x110	105x80	13.5x11	53	215	600	03P1S160K50JUADX6020
200	50	135x110	105x80	13.5x11	55	245	800	03P1S200K50JUADX6020
250	50	135x110	105x80	13.5x11	67	297	800	03P1S250K50JUADX7520

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore a 92 brwon polyurethane thread, two ball bearings
