Housing
bolt_hole_castors_with_total_brake
Wheel diameter
75, 100, 125mm
Load capacity
75, 100, 100kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

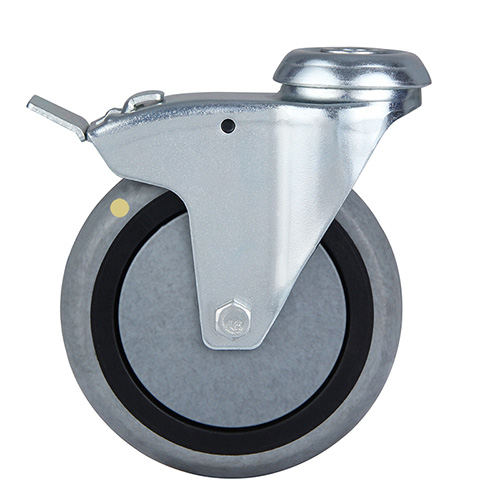

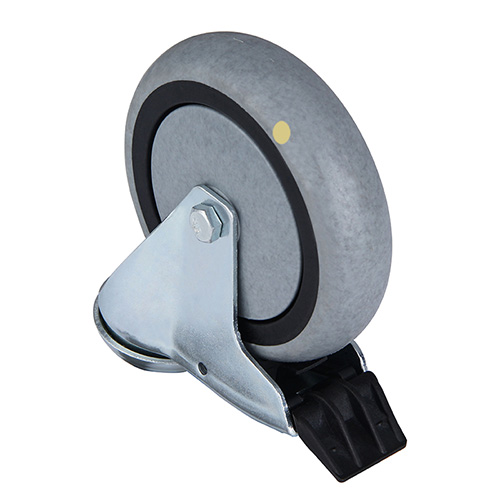

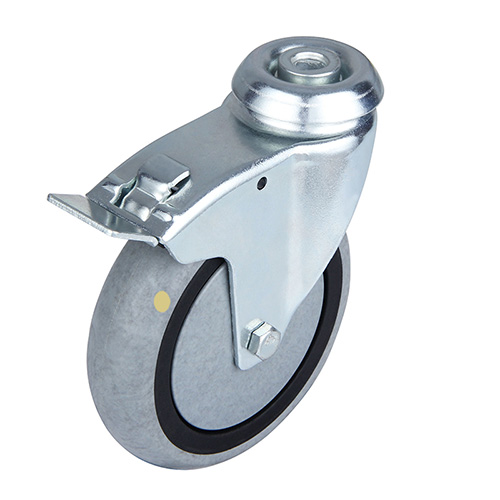

Pressed steel fork assembly, zinc-plated, swivel head with double ball race and sealing, black electric conduction polypropylene wheel centre, grey electric conduction shore a 85"thermoplastic rubber thread, plain bore
 Wheel Diameter |
 Width of Tread |
 Offset |
 Hole center |
 Swivel raidus |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 75 | 28 | 30.5 | ф10.3/ф13 | - | 100.5 | 75 | 18H1TB75D28CCPPX3612 |
| 100 | 32 | 40 | ф10.3/ф13 | - | 134.5 | 100 | 18H1TB100D32CCPPX3612 |
| 125 | 32 | 40 | ф10.3/ф13 | - | 159.5 | 100 | 18H1TB125D32CCPPX3612 |
Tile Floor
Resin Cement Floor
