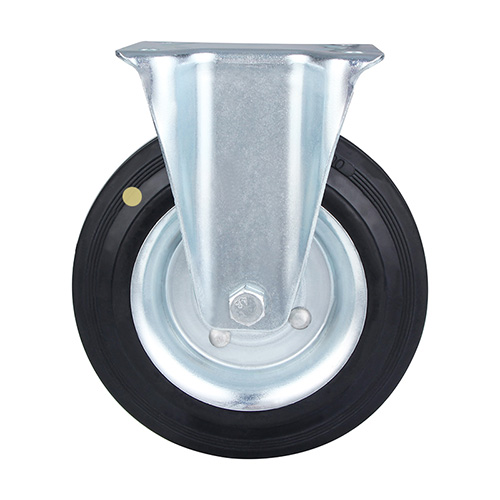

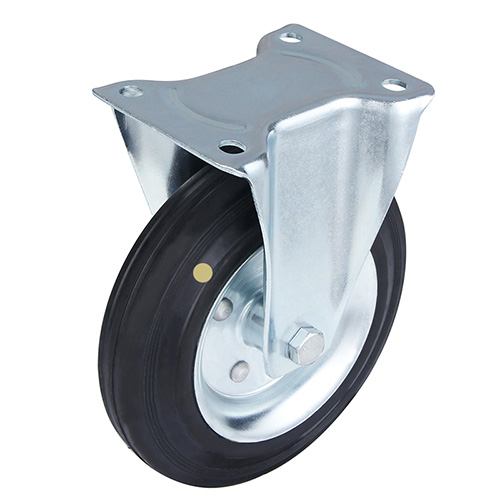

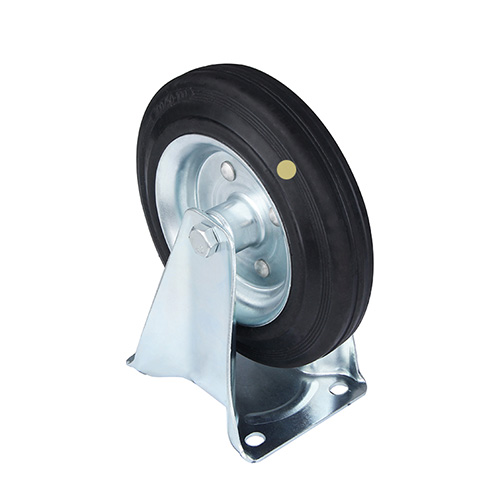

Black Electric Conduction Rubber Fixed Castors

Black Electric Conduction Rubber Fixed Castors

Electric Conduction Castors , Black

Housing

fixed_castors

Wheel diameter

80, 100, 125, 160, 200mm

Load capacity

50, 70, 100, 140, 205kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85+/-3

Description

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, black shore a 85+/-3 electric conduction rubber thread, pressed steel wheel centre ,roller bearing

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Overall height	Load capacity	number
80	30	102x87	80x60	11x9	100	50	07P1F80C30JCMRX4012
100	30	102x87	80x60	11x9	125	70	07P1F100C30JCMRX4012
100	30	102x87	80x60	11x9	128	70	07P1F/S100C30JCMRX4012
125	37.5	102x87	80x60	11x9	155	100	07P1F125C37.5JCMRX5015
160	40	135x114	105x80	13.5x11	190	140	07P1F160C40JCMRX6020
200	50	135x114	105x80	13.5x11	235	205	07P1F200C50JCMRX6020
