Black Electric Conduction Rubber Swivel Castors

Black Electric Conduction Rubber Swivel Castors

Electric Conduction Castors , Black

Housing

swivel_castors

Wheel diameter

80, 100, 125, 160, 200mm

Load capacity

50, 70, 100, 140, 205kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85+/-3

Description

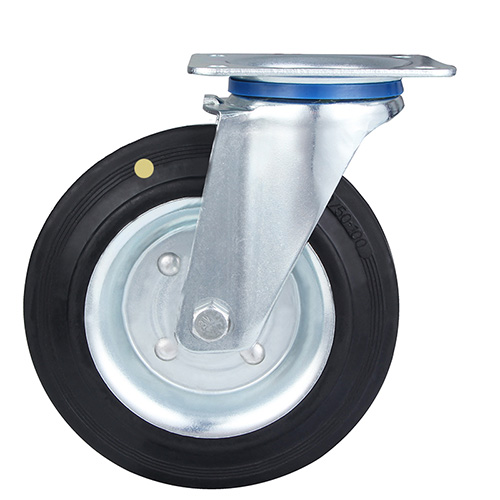

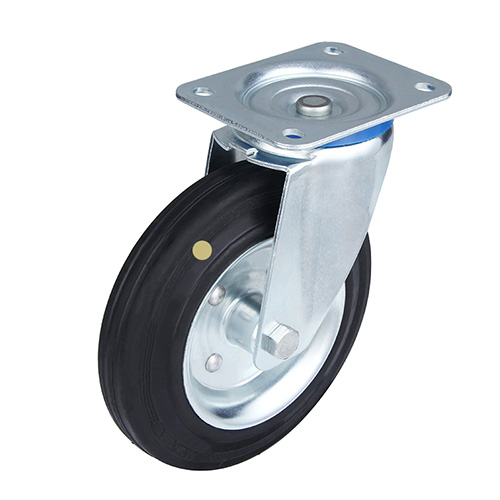

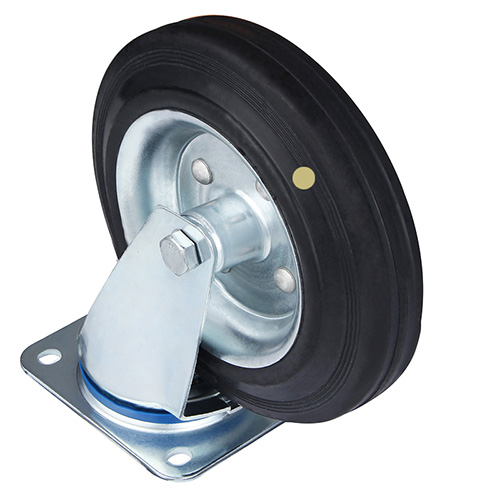

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, black shore a 85+/-3 electric conduction rubber thread, pressed steel wheel centre ,roller bearing

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
80	30	105x80	80x60	11x9	36	100	50	07P1S80C30JCMRX4012
100	30	105x80	80x60	11x9	36	125	70	07P1S100C30JCMRX4012
100	30	105x80	80x60	11x9	36	128	70	07P1S/S100C30JCMRX4012
125	37.5	105x80	80x60	11x9	36	155	100	07P1S125C37.5JCMRX5015
160	40	135x110	105x80	13.5x11	52	190	140	07P1S160C40JCMRX6020
200	50	135x110	105x80	13.5x11	54	235	205	07P1S200C50JCMRX6020
